Using your phone/tablet as a mouse with Collage

Using your phone/tablet as a mouse with Collage

On the latest version of Collage you are able to connect your touchscreen device and use it as a mouse to control your panel.

This can be accomplished in a few short steps.

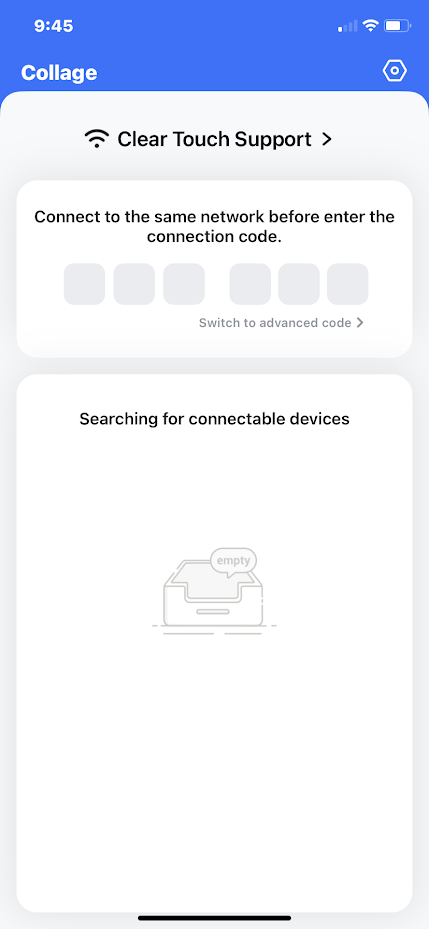

1. Open Collage on both your panel and your phone/tablet. Enter the 6 digit connection code to connect your device to the panel

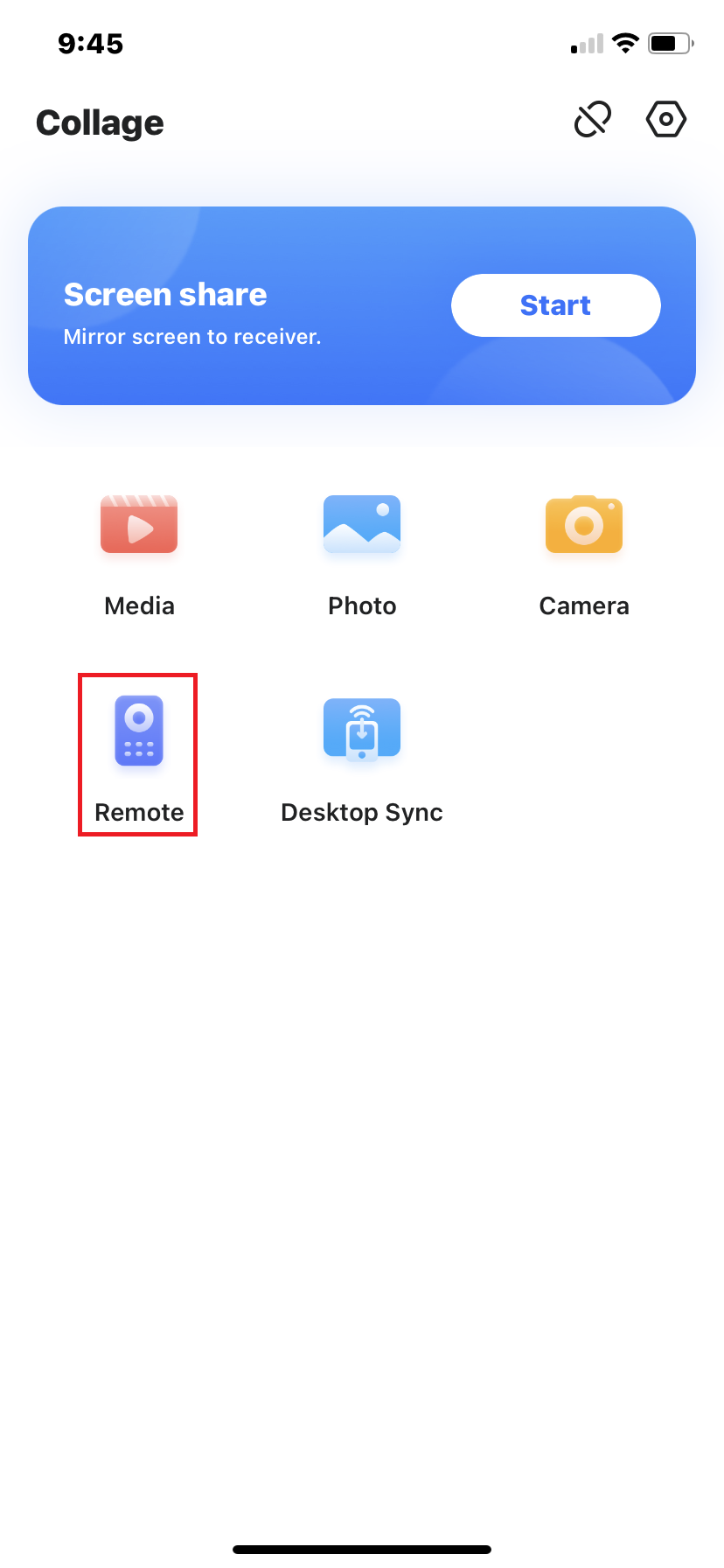

2. Select the icon pictured below labeled Remote



3. At this point you will need to accept the request from your panel if you have Permission Mode enabled. If not, you should now be able to use your screen as a trackpad to control your panel's screen. You have a scrollbar option on the right hand side as well as your left and right click buttons on the bottom.

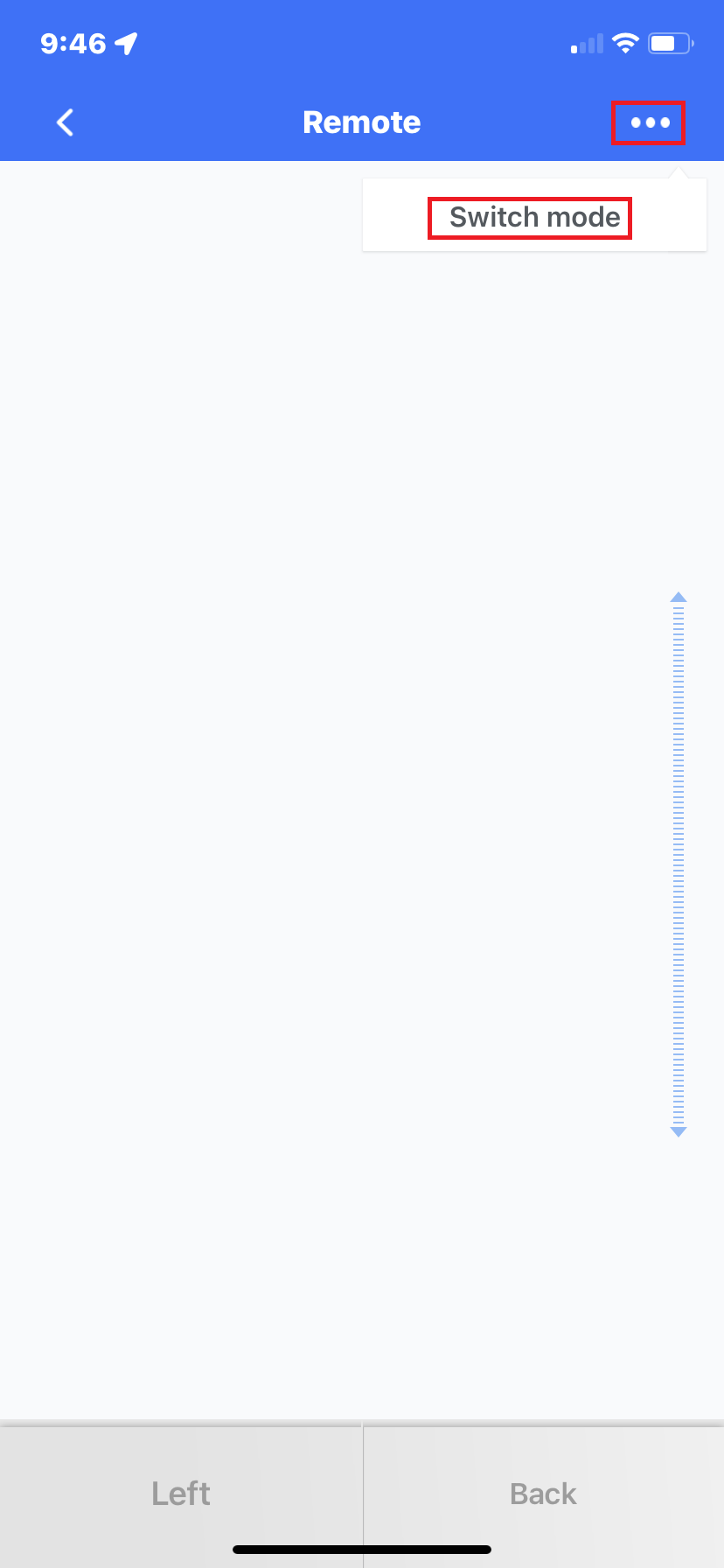

4. You also have the option to change the way you manipulate the mouse. To do this, hit the 3 dots imaged above then select Switch Mode

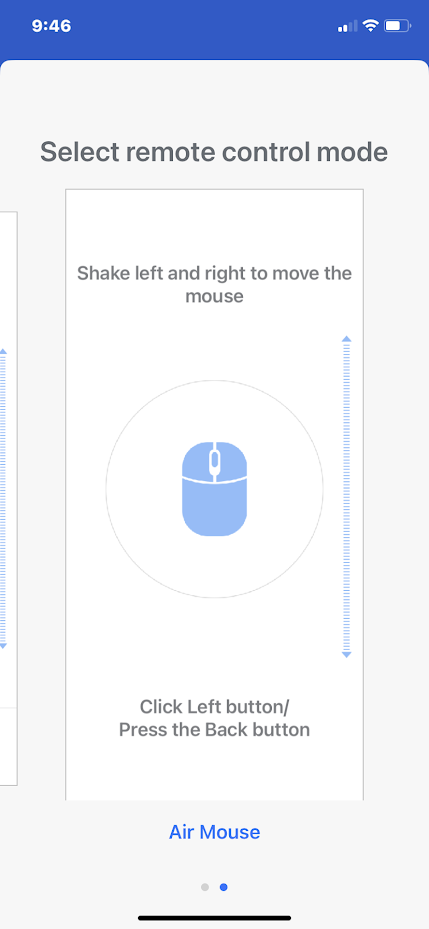

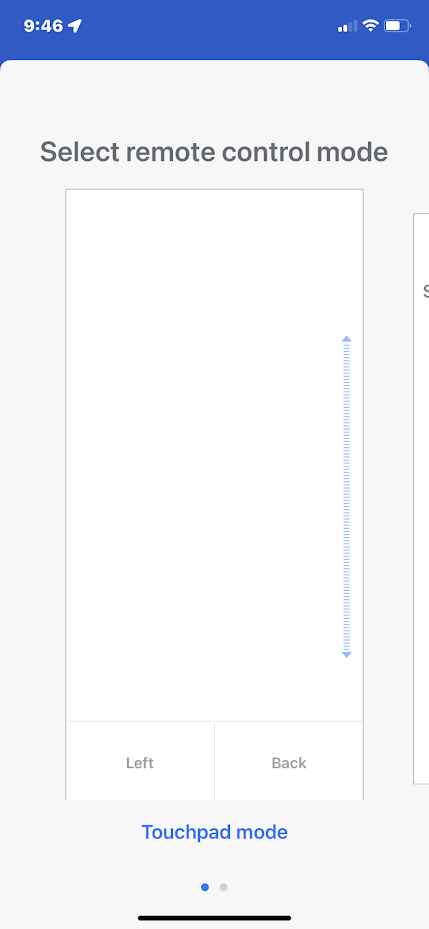

5. From here you can select your preferred method to use. For more precise control, the trackpad will be your best option. For quicker control and easier clicks, the Air Mouse is also very useful. Try both out and see which works best for you!



Have fun interacting!

If you run into any issues or have any questions about this feature, please contact Support at 864-643-5045 or submit a Support Ticket
