Updating firmware for the DC200 - Achieve passwordless network connection

Updating firmware for the DC200 - Achieve passwordless network connection

When the DC200 was launched, it required a WPA2-Personal network configuration. The user could find the SSID in the camera web interface, select it, and enter the correct password. We have since learned that it could not connect to a passwordless network. This firmware adds the option for the DC200 to connect to a passwordless network.


Here is the firmware needed, it is V4730: https://drive.google.com/file/d/1w4pxUyJaqKxMHnUzmqOu1KLdNUMMRKEd/view?usp=sharing


Wirelessly

Please achieve the firmware reload through the following steps.


  1. Place the camera into Wi-Fi Access Point Mode.

    1. Once the camera is powered on hold down the Resolution Switch button for 5 seconds.

  1. The camera will restart in Hotspot/Wi-Fi Access Point mode

  1. Connect to the camera on your laptop/PC. Find the SSID [DC200_5G_xxxxxx] and enter the password {default: 88889999].

  2. Afer a successful hotspot connection, open the web browser, and enter the default IP [192.168.100.1] in the address bar.

  3. Enter the login account [admin] and default password [9999], and click Login

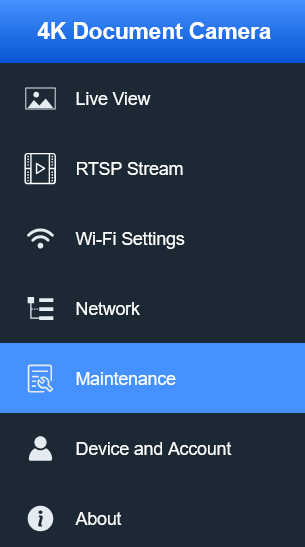

  4. Select the Maintenance tab

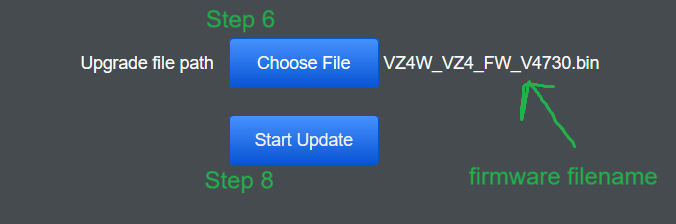

  1. Next to "Upgrade file path," select Choose File

  2. Locate the firmware file in your computer file explorer and select it.

  3. Once the firmware file is listed, select Start Update.

  1. The system will take 3-5 minutes to complete the firmware update.

  2.  When reconnecting with the web camera, the web interface should recognize the "Current software version" as V4730.



Once this firmware update is complete, your DC200 will be able to connect to a passwordless wireless network.
