Recommended 6000A+ Panel Settings and FAQ

Recommended 6000A+ Panel Settings

Welcome to the A+ Panel! To enhance the initial user experience with the Clear Touch A+ Panel, we suggest making the following settings adjustments for a smoother and more user-friendly introduction.

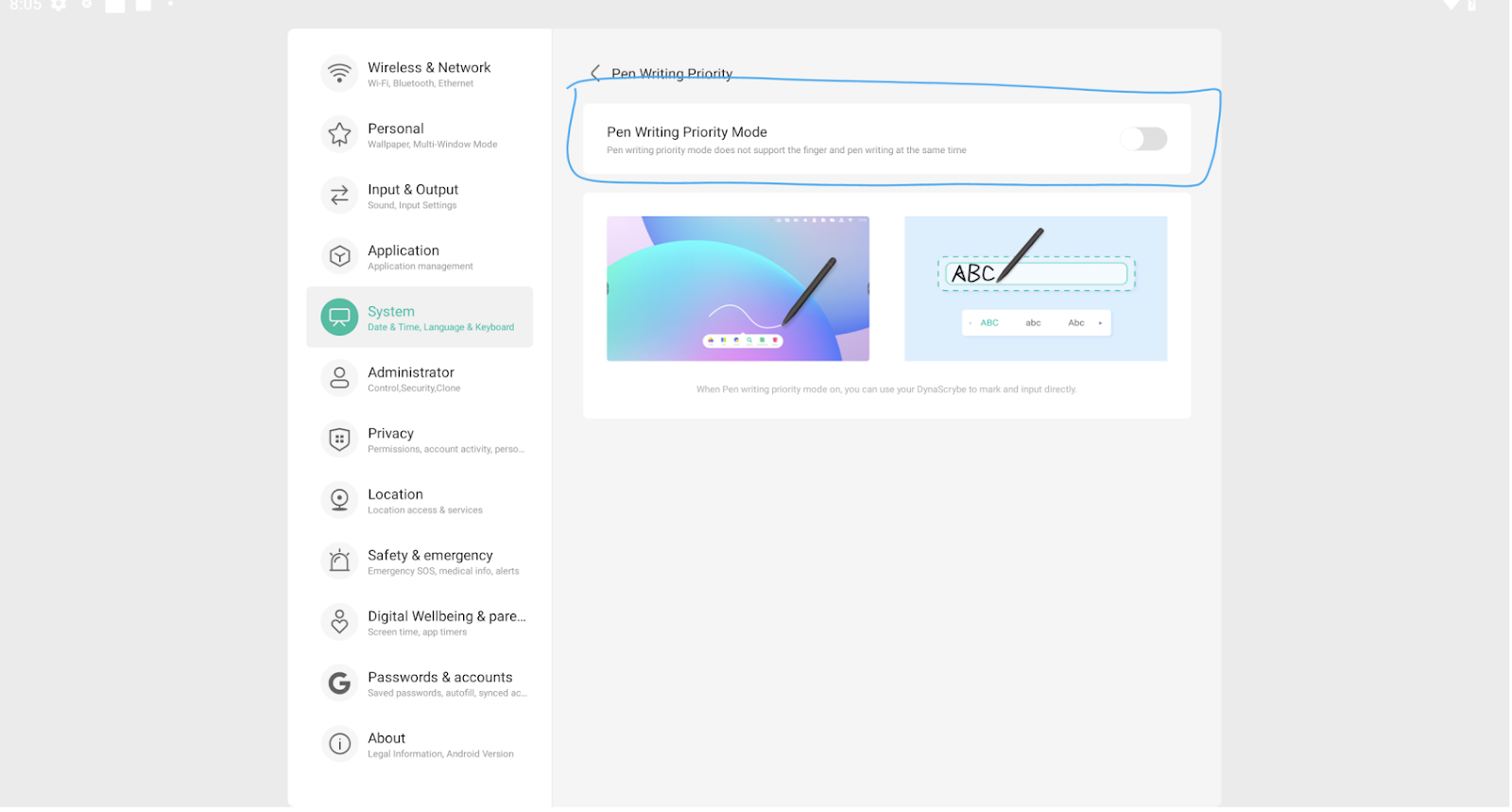

Pen Writing Priority

This setting allows the pens to automatically be detected for annotations without pulling up the annotation tool.

Disabling this setting is recommended for a more fluid touch interaction experience, as less processing is needed for each touch detection.

To Disable, select Settings > System > Pen Writing Priority:

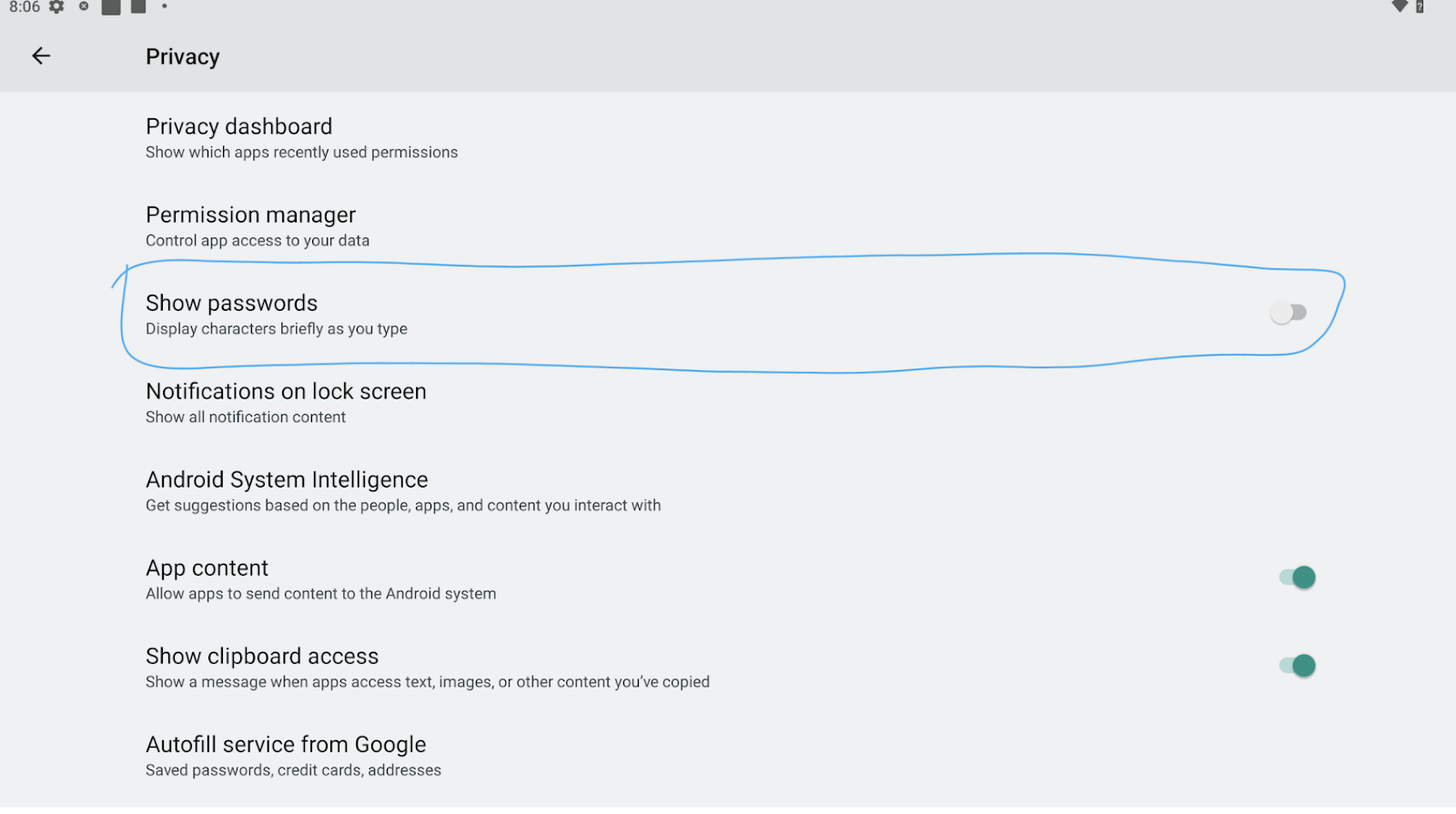

Show Password Text

Disabling these options will allow the user to securely enter their screen pin while at the front of the panel or when using the panel remote to enter the code.

To Disable, select Settings > Privacy: Toggle on “Show Passwords”

Disable the native taskbar

*This menu will populate when a user swipes from the top of the screen. To avoid allowing sensitive notifications and to  prevent Wifi hotspot access, we recommend disabling this menu option.

Keep in mind: disabling this toolbar will also disable your user menu access, where you can switch between multiple users. If multiple users are configured and this setting is enabled, the additional users will be removed.

To Disable, select Settings > System: Always hide native status bar. This will reboot the panel

FAQ- How To’s:

How do I close all open Android Apps? - Overlay Toolbar (tap on the floating arrow on the right or left side of the screen) > Processes > Swipe Right > Clear All

How do I uninstall apps? - Overlay Toolbar (tap on the floating arrow on the right or left side of the screen) > Expand All Apps > Select app > Drag to Uninstall

How do I connect an external device with touch? -

1. Devices that support USB and HDMI can use HDMI ports 1 or 2 on the panel, paired with the Touch 1 port on the panel. HDMI 3 can be paired with the Touch 2 port that is located underneath the panel on the right side.

2. Devices that support USB-C will be able to use the USB-C Port for video, audio, and touch. Please note that your USB-C cable must be a high quality cable that is capable of 4K video signals @ 60hz.

How do I find a saved annotation? - Overlay Toolbar (tap on the floating arrow on the right or left side of the screen) > Finder > Mark Folder

How do I change my wallpaper? -

Preinstalled wallpapers: Settings > Personal > Wallpaper > Configure as preferred

Custom wallpaper: Download image to USB or Local Storage > Finder > Select Photo > Open with Photos (blue and white application, not Google Photos) > Settings > Set to Wallpaper

How do I add a clock to my homescreen? - Touch and hold on a blank space on the Android home screen > Widgets > Clock > Choose preferred style > Touch and hold to resize, move, or customize

How do I use split screen for two applications? - Open both of the apps you would like to split so they are running in the background > Overlay Toolbar (tap on the floating arrow on the right or left side of the screen) > Processes > Split > Select second application
