Internet Access on Android

Internet/Network access on the Android side of the panel can be provided in two ways:

1. Wired- Located on the underside of the panel inputs, you'll find the Ethernet port for a hard-wired network cable. Next, in Android, go to Apps, then Settings, Click on Network, toggle on Ethernet and verify settings.

2. Wireless- Every panel includes a Wi-fi module in its accessory kit that must be installed to use Wi-Fi. This is a device that is designed specifically for ClearTouch panels. There will be a metal plate that must be removed before Wi-Fi module can be installed. Remove the two Phillips head screws that hold the plate in and then gently remove the plate. On most models this will be located near the bottom center of the panel. The Wi-Fi module will slide into the slot.

Once the module is installed, go to the settings in the Android input. Toggle on the Wi-Fi and select the network you would like to connect to. Follow on screen instructions to connect to your network.

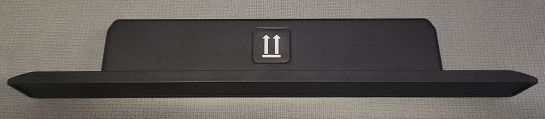

Example of a Wi-Fi module.
